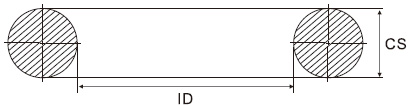

Attention:lnternal Diameter Range(ID Range); Cross Section Range(CS Rang)
| 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS |
|---|---|---|---|---|---|---|---|
| ZB8001 | 4x1 | ZB8046 | 15.5x1.5 | ZB8091 | 10.4x1.8 | ZB8136 | 5x2 |
| ZB8002 | 8x1 | ZB8047 | 16x1.5 | ZB8092 | 11x1.8 | ZB8137 | 5.5x2 |
| ZB8003 | 8.5x1 | ZB8048 | 17x1.5 | ZB8093 | 12.4x1.8 | ZB8138 | 6x2 |
| ZB8004 | 9x1 | ZB8049 | 18x1.5 | ZB8094 | 15.2x1.8 | ZB8139 | 7x2 |
| ZB8005 | 15x1 | ZB8050 | 19.5x1.5 | ZB8095 | 15.4x1.8 | ZB8140 | 7.2x2 |
| ZB8006 | 11x1 | ZB8051 | 20x1.5 | ZB8096 | 16.4x1.8 | ZB8141 | 7.5x2 |
| ZB8007 | 28x1 | ZB8052 | 23x1.5 | ZB8097 | 17.2x1.8 | ZB8142 | 8x2 |
| ZB8008 | 32x1 | ZB8053 | 24.5x1.5 | ZB8098 | 19.4x1.8 | ZB8143 | 8.3x2 |
| ZB8009 | 1.8x1.1 | ZB8054 | 27x1.5 | ZB8099 | 20.2x1.8 | ZB8144 | 8.6x2 |
| ZB8010 | 9.8x1.1 | ZB8055 | 37x1.5 | ZB8100 | 21.4x1.8 | ZB8145 | 9x2 |
| ZB8011 | 1.3x1.2 | ZB8056 | 39.7x1.5 | ZB8101 | 22x1.8 | ZB8146 | 9.5x2 |
| ZB8012 | 4.6x1.2 | ZB8057 | 41.7x1.5 | ZB8102 | 30x1.8 | ZB8147 | 10x2 |
| ZB8013 | 5.6x1.2 | ZB8058 | 3.7x1.6 | ZB8103 | 32x1.8 | ZB8148 | 10.2x2 |
| ZB8014 | 6x1.2 | ZB8059 | 4x1.6 | ZB8104 | 32.4x1.8 | ZB8149 | 11x2 |
| ZB8015 | 21.6x1.2 | ZB8060 | 4.1x1.6 | ZB8105 | 33.4x1.8 | ZB8150 | 12x2 |
| ZB8016 | 3.36x1.22 | ZB8061 | 4.8x1.6 | ZB8106 | 34.4x1.8 | ZB8151 | 13x2 |
| ZB8017 | 7.5x1.25 | ZB8062 | 5.2x1.6 | ZB8107 | 41.1x1.8 | ZB8152 | 14x2 |
| ZB8018 | 4.8x1.3 | ZB8063 | 5.8x1.6 | ZB8108 | 46.4x1.8 | ZB8153 | 14.5x2 |
| ZB8019 | 6.9x1.3 | ZB8064 | 6x1.6 | ZB8109 | 75x1.8 | ZB8154 | 15x2 |
| ZB8020 | 8.9x1.3 | ZB8065 | 7x1.6 | ZB8110 | 2.2x1.9 | ZB8155 | 16x2 |
| ZB8021 | 9.5x1.3 | ZB8066 | 7.3x1.6 | ZB8111 | 3.1x1.9 | ZB8156 | 17x2 |
| ZB8022 | 8.2x1.4 | ZB8067 | 7.8x1.6 | ZB8112 | 3.2x1.9 | ZB8157 | 17.5x2 |
| ZB8023 | 11.2x1.4 | ZB8068 | 8.1x1.6 | ZB8113 | 3.4x1.9 | ZB8158 | 18x2 |
| ZB8024 | 11.7x1.4 | ZB8069 | 14.8x1.6 | ZB8114 | 4.2x1.9 | ZB8159 | 19x2 |
| ZB8025 | 25.2x1.4 | ZB8070 | 15.8x1.6 | ZB8115 | 4.7x1.9 | ZB8160 | 19.5x2 |
| ZB8026 | 11.1x1.45 | ZB8071 | 2.1x1.7 | ZB8116 | 5.2x1.9 | ZB8161 | 20x2 |
| ZB8027 | 1.5x1.5 | ZB8072 | 5.6x1.7 | ZB8117 | 6.2x1.9 | ZB8162 | 20.9x2 |
| ZB8028 | 3x1.5 | ZB8073 | 5.8x1.7 | ZB8118 | 6.4x1.9 | ZB8163 | 22x2 |
| ZB8029 | 4x1.5 | ZB8074 | 9.4x1.7 | ZB8119 | 6.7x1.9 | ZB8164 | 23.5x2 |
| ZB8030 | 5x1.5 | ZB8075 | 11.5x1.7 | ZB8120 | 7.2x1.9 | ZB8165 | 24x2 |
| ZB8031 | 5.8x1.5 | ZB8076 | 18.6x1.7 | ZB8121 | 8.2x1.9 | ZB8166 | 24.5x2 |
| ZB8032 | 6x1.5 | ZB8077 | 20.6x1.7 | ZB8122 | 8.8x1.9 | ZB8167 | 26x2 |
| ZB8033 | 6.5x1.5 | ZB8078 | 24x1.7 | ZB8123 | 9.2x1.9 | ZB8168 | 27x2 |
| ZB8034 | 7x1.5 | ZB8079 | 38.3x1.7 | ZB8124 | 10.2x1.9 | ZB8169 | 28x2 |
| ZB8035 | 8x1.5 | ZB8080 | 2.3x1.8 | ZB8125 | 10.9x1.9 | ZB8170 | 30x2 |
| ZB8036 | 8.8x1.5 | ZB8081 | 2.6x1.8 | ZB8126 | 11.2x1.9 | ZB8171 | 31x2 |
| ZB8037 | 9x1.5 | ZB8082 | 2.9x1.8 | ZB8127 | 12.2x1.9 | ZB8172 | 35x2 |
| ZB8038 | 9.5x1.5 | ZB8083 | 3.3x1.8 | ZB8128 | 16.2x1.9 | ZB8173 | 36x2 |
| ZB8039 | 10x1.5 | ZB8084 | 5.4x1.8 | ZB8129 | 19.2x1.9 | ZB8174 | 38x2 |
| ZB8040 | 11x1.5 | ZB8085 | 5.6x1.8 | ZB8130 | 26x1.9 | ZB8175 | 42x2 |
| ZB8041 | 12x1.5 | ZB8086 | 6.1x1.8 | ZB8131 | 28.2x1.9 | ZB8176 | 73.5x2 |
| ZB8042 | 12.5x1.5 | ZB8087 | 6.2x1.8 | ZB8132 | 44.2x1.9 | ZB8177 | 3.8x2.1 |
| ZB8043 | 13x1.5 | ZB8088 | 6.6x1.8 | ZB8133 | 2.2x2 | ZB8178 | 7.4x2.1 |
| ZB8044 | 14x1.5 | ZB8089 | 7.4x1.8 | ZB8134 | 3.5x2 | ZB8179 | 7.8x2.1 |
| ZB8045 | 15x1.5 | ZB8090 | 7.6x1.8 | ZB8135 | 4x2 | ZB8180 | 22.8x2.1 |
| 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS |
| ZB8181 | 9.7x2.15 | ZB8226 | 13x2.5 | ZB8271 | 33.3x2.6 | ZB8314 | 11x3 |
| ZB8182 | 6.6x2.2 | ZB8227 | 14x2.5 | ZB8272 | 40.8x2.6 | ZB8315/td> | 12x3 |
| ZB8183 | 7.6x2.2 | ZB8228 | 15x2.5 | ZB8273 | 42.8x2.6 | ZB8316 | 13.2x3 |
| ZB8184 | 11.6x2.2 | ZB8229 | 16.4x2.5 | ZB8274 | 44.8x2.6 | ZB8317 | 14x3 |
| ZB8185 | 12.6x2.2 | ZB8230 | 17x2.5/td> | ZB8275 | 51.8x2.6 | ZB8318 | 14.5x3 |
| ZB8186 | 13.6x2.2 | ZB8231 | 18x2.5 | ZB8276 | 53.3x2.6 | ZB8319 | 16x3 |
| ZB8187 | 15.6x2.2 | ZB8232 | 19x2.5 | ZB8277 | 69.8x2.6 | ZB8320 | 17x3 |
| ZB8188 | 16.6x2.2 | ZB8233 | 20x2.5 | ZB8278 | 75x2.65 | ZB8321 | 19x3 |
| ZB8189 | 18x2.2 | ZB8234 | 21x2.5 | 95x2.65 | ZB8322 | 20x3 | |
| ZB8190 | 18.6x2.2 | ZB8235 | 22.5x2.5 | 118x2.65 | ZB8323 | 21x3 | |
| ZB8191 | 27.6x2.2 | ZB8236 | 23x2.5 | ZB8279 | 7.6x2.7 | ZB8324 | 22x3 |
| ZB8192 | 33.6x2.2 | ZB8237 | 24.2x2.5 | ZB8280 | 8.1x2.7 | ZB8325 | 24.5x3 |
| ZB8193 | 44.6x2.2 | ZB8238 | 25x2.5 | ZB8281 | 8.4x2.7 | ZB8326 | 25x3 |
| ZB8194 | 8.4x2.3 | ZB8239 | 26x2.5 | ZB8282 | 9.1x2.7 | ZB8327 | 27x3 |
| ZB8195 | 9.3x2.3 | ZB8240 | 31x2.5 | ZB8283 | 10.4x2.7 | ZB8328 | 29x3 |
| ZB8196 | 9.4x2.3 | ZB8241 | 32x2.5 | ZB8284 | 10.6x2.7 | ZB8329 | 30x3 |
| ZB8197 | 18.4x2.3 | ZB8242 | 33x2.5 | ZB8285 | 12.6x2.7 | ZB8330 | 32x3 |
| ZB8198 | 9.2x2.4 | ZB8243 | 34x2.5 | ZB8286 | 13.6x2.7 | ZB8331 | 33x3 |
| ZB8199 | 9.5x2.4 | ZB8244 | 35x2.5 | ZB8287 | 14.6x2.7 | ZB8332 | 34x3 |
| ZB8200 | 10.2x2.4 | ZB8245 | 36x2.5 | ZB8288 | 15.1x2.7 | ZB8333 | 37x3 |
| ZB8201 | 11.2x2.4 | ZB8246 | 37x2.5 | ZB8289 | 15.6x2.7 | ZB8334 | 42x3 |
| ZB8202 | 12.3x2.4 | ZB8247 | 38x2.5 | ZB8290 | 16.6x2.7 | ZB8335 | 46x3 |
| ZB8203 | 13.2x2.4 | ZB8248 | 47x2.5 | ZB8291 | 17.1x2.7 | ZB8336 | 61x3 |
| ZB8204 | 14.2x2.4 | ZB8249 | 49x2.5 | ZB8292 | 18.6x2.7 | ZB8337 | 67x3 |
| ZB8205 | 15.2x2.4 | ZB8250 | 70x2.5 | ZB8293 | 20.6x2.7 | ZB8338 | 3.8x3.1 |
| ZB8206 | 16.2x2.4 | ZB8251 | 7.9x2.55 | ZB8294 | 22.6x2.7 | ZB8339 | 17.8x3.1 |
| ZB8207 | 17.2x2.4 | ZB8252 | 59.9x2.55 | ZB8295 | 24.6x2.7 | ZB8340 | 18.8x3.1 |
| ZB8208 | 18.2x2.4 | ZB8253 | 3.7x2.6 | ZB8296 | 28.3x2.7 | ZB8341 | 20.8x3.1 |
| ZB8209 | 20.2x2.4 | ZB8254 | 4x2.6 | ZB8297 | 30x2.7 | ZB8342 | 21.8x3.1 |
| ZB8210 | 21.2x2.4 | ZB8255 | 8.8x2.6 | ZB8298 | 44.8x2.7 | ZB8343 | 23.8x3.1 |
| ZB8211 | 217x2.4 | ZB8256 | 8.88x2.66 | ZB8299 | 48.6x2.7 | ZB8344 | 25.8x3.1 |
| ZB8212 | 22.2x2.4 | ZB8257 | 11.8x2.6 | ZB8300 | 49.6x2.7 | ZB8345 | 28.8x3.1 |
| ZB8213 | 40.2x2.4 | ZB8258 | 12.2x2.6 | ZB8301 | 62.6x2.7 | ZB8346 | 30.8x3.1 |
| ZB8214 | 43.2x2.4 | ZB8259 | 12.3x2.6 | ZB8302 | 11.8x2.8 | ZB8347 | 33.8x3.1 |
| ZB8215 | 82.9x2.4 | ZB8260 | 13.1x2.6 | ZB8303 | 12x2.8 | ZB8348 | 37.8x3.1 |
| ZB8216 | 2x2.5 | ZB8261 | 15.6x2.6 | ZB8304 | 13.8x2.8 | ZB8349 | 38.8x3.1 |
| ZB8217 | 4x2.5/td> | ZB8262 | 17.1x2.6 | ZB8305 | 18.4x2.8 | ZB8350 | 40.8x3.1 |
| ZB8218 | 5x2.5 | ZB8263 | 17.3x2.6 | ZB8306 | 6.2x2.9 | ZB8351 | 43.8x3.1 |
| ZB8219 | 5.5x2.5 | ZB8264 | 17.8x2.6 | ZB8307 | 20.2x2.9 | ZB8352 | 48.8x3.1 |
| ZB8220 | 6x2.5 | ZB8265 | 21.8x2.6 | ZB8308 | 48.2x2.9 | ZB8353 | 53.8x3.1 |
| ZB8221 | 7x2.5 | ZB8266 | 24.8x2.6 | ZB8309 | 5x3 | ZB8354 | 56.8x3.1 |
| ZB8222 | 8x2.5 | ZB8267 | 26.8x2.6 | ZB8310 | 7x3 | ZB8355 | 58.8x3.1 |
| ZB8223 | 9x2.5 | ZB8268 | 27.8x2.6 | ZB8311 | 8x3 | ZB8356 | 63.8x3.1 |
| ZB8224 | 10x2.5 | ZB8269 | 28.3x2.6 | ZB8312 | 9x3 | ZB8357 | 68.8x3.1 |
| ZB8225 | 11x2.5 | ZB8270 | 29.5x2.6 | ZB8313 | 10x3 | ZB8358 | 73.8x3.1 |
| 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS | 模具代码 | IDxCS |
| ZB8359 | 78.8x.3.1 | ZB8389 | 25x3.5 | ZB8417 | 29.3x3.6 | ZB8447 | 42x5.5 |
| ZB8360 | 83.8x.3.1 | ZB8390 | 26x3.5 | ZB8418 | 53.8x3.6 | ZB8448 | 78.6x5.7 |
| ZB8361 | 93.8x.3.1 | ZB8391 | 27x3.5 | ZB8419 | 19.8x3.7 | ZB8449 | 83.6x5.7 |
| ZB8362 | 98.8x.3.1 | ZB8392 | 28x3.5 | ZB8420 | 34.4x3.8 | ZB8450 | 88.6x5.7 |
| ZB8363 | 103.8x.3.1 | ZB8393 | 29x3.5 | ZB8421 | 42.4x3.8 | ZB8451 | 93.6x5.7 |
| ZB8364 | 108.8x.3.1 | ZB8394 | 30x3.5 | ZB8422 | 49.4x3.8 | ZB8452 | 98.6x5.7 |
| ZB8365 | 113.8x.3.1 | ZB8395 | 31x3.5 | ZB8423 | 9x4 | ZB8453 | 103.6x5.7 |
| ZB8366 | 118.8x.3.1 | ZB8396 | 32x3.5 | ZB8424 | 10x4 | 133.6x5.7 | |
| ZB8367 | 133.8x.3.1 | ZB8397 | 33x3.5 | ZB8425 | 10.5x4 | 168.6x5.7 | |
| ZB8368 | 143.8x.3.1 | ZB8398 | 34x3.5 | ZB8426 | 14x4 | ZB8454 | 108.6x5.7 |
| ZB8369 | 10.6x3.2 | ZB8399 | 35x3.5 | ZB8427 | 22x4 | ZB8455 | 113.6x5.7 |
| ZB8370 | 16.6x3.2 | ZB8400 | 36x3.5 | ZB8428 | 36x4 | ZB8456 | 118.6x5.7 |
| ZB8371 | 19.6x3.2 | ZB8401 | 38x3.5 | ZB8429 | 42x4 | ZB8457 | 138.6x5.7 |
| ZB8372 | 21.6x3.2 | ZB8402 | 40x3.5 | ZB8430 | 52x4 | ZB8458 | 143.6x5.7 |
| ZB8373 | 36x3.2 | ZB8403 | 41x3.5 | ZB8431 | 56x4 | ZB8459 | 46x6 |
| ZB8374 | 43.1x3.2 | ZB8404 | 44x3.5 | ZB8432 | 64x4 | ZB8460 | 56x6 |
| ZB8375 | 25.1x3.2 | ZB8405 | 45x3.5 | ZB8433 | 102x4 | ZB8461 | 49x6.5 |
| ZB8376 | 5x3.5 | ZB8406 | 47.2x3.5 | ZB8434 | 30.1x4.2 | ZB8462 | 45.5x7 |
| ZB8377 | 6x3.5 | ZB8407 | 49x3.5 | ZB8435 | 69x4.5 | ZB8463 | 56x7 |
| ZB8378 | 8x3.5 | ZB8408 | 50x3.5 | ZB8436 | 35x5 | ZB8464 | 182x7 |
| ZB8379 | 10x3.5 | ZB8409 | 51x3.5 | ZB8437 | 36x5 | ZB8465 | 198x7 |
| ZB8380 | 11x3.5 | ZB8410 | 59.5x3.5 | ZB8438 | 44x5 | ZB8466 | 276x7 |
| ZB8381 | 14x3.5 | ZB8411 | 100x3.5 | ZB8439 | 63x5 | ZB8467 | 110x8 |
| ZB8382 | 17x3.5 | ZB8412 | 25x3.55 | ZB8440 | 80x5 | ZB8468 | 64.7x9 |
| ZB8383 | 18x3.5 | ZB8413 | 144.7x3.65 | ZB8441 | 110x5 | ZB8474 | 4x2.5 |
| ZB8384 | 20x3.5 | 182.9x3.55 | ZB8442 | 10.4x5.3 | ZB8475 | 5.2x2 | |
| ZB8385 | 21x3.5 | 228.9x3.55 | ZB8443 | 37.4x5.3 | ZB8476 | 13.4x1.8 | |
| ZB8386 | 22x3.5 | ZB8414 | 36.5x3.55 | ZB8444 | 49.4x5.3 | ZB8477 | 25.5x2.5 |
| ZB8387 | 23.4x3.5 | ZB8415 | 7.5x3.6 | ZB8445 | 31.2x5.4 | ZB8478 | 39.9x3.8 |
| ZB8388 | 24x3.5 | ZB8416 | 22.8x3.6 | ZB8446 | 40x5.5 | ZB8479 | 28x3 |
